4GP-1200 Basic Type Orchard Platform

Summary:

4GP-1200 basic electric drive picking operation platform is a full-size picking operation platform developed by Zoomye Company for medium and large-scale park users.

category:

Self-propelled Orchard Platform

Email:

zoomyetech@126.com

Online consultation

Back to list

Keywords:

Electric Drive Orchard Picking Platform

Description Functional parameter Related products Related download

※Description

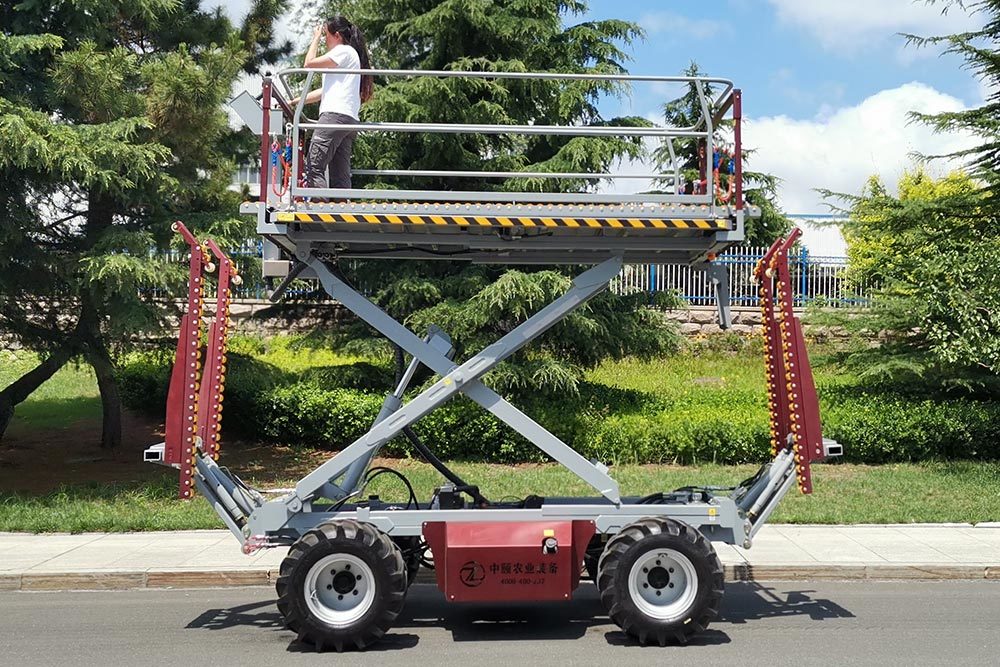

4GP-1200 basic electric drive picking operation platform is a full-size picking operation platform developed by Zoomye Company for medium and large-scale park users. The operating surface is 3m x 3m, which can accommodate 6-8 operators at the same time+2 500 kg standard fruit baskets. This platform is the cornerstone of Zoomye 1200 series platform, with high cost performance, high structural strength, high reliability, high durability, high load, high efficiency, high compatibility It is easy to maintain. The 1200 platform provides broad compatibility space for various optional configurations.

Suitable crops: apples, pears, cherries, peaches, oranges, tobacco, stereoscopic vegetables, etc

Suitable for user groups: medium and large-scale parks

●Green new energy, “zero” noise pollution

●Cheap and effective, it costs as low as a few money daily

●Easy to operate and learn Stepless speed regulation for walking

●High strength body structure

●"Zero" drop worktable design

●Adopt adjustable angle guardrail structure

●Brand electrical components are used, ensures reliable and durable electrical control system

●High standard harness of commercial vehicles

●High capacity brand battery is used, ensures a long service life

●High standard on-board charging device

●Brand hydraulic components are used, ensure the stability and reliability of hydraulic system

●Hydraulic pipe fittings with famous brands

●Complete machine structure is formed by laser cutting with high precision

●Standard widened off-road tire are equipped as a standard for the whole series

●UV resistant and weather resistant paint coating

●The traveling system has the function of kinetic energy recovery

●8 to 32 hours of continuous operation on a single charge

※Optional

A Extended range generator

B Electronic brake

C MP3 player

D Night work lightE Sunshade

F Solar auxiliary power generation system

G Rear lifting fork system

H Maintenance free traction battery

I Guardrail storage bag

J Folding seats

K 220V AC output

L Front lifting fork system

※Product Specification Table of 4GP-1200 Orchard Picking Platform

Serial No	Item	Unit	Main Parameter
1	Model Name	/	4GP-1200 orchard picking platform
2	Structural Style	/	Self-propelled type
3	Driving Type	/	2WD
4	Type of lifting mechanism	/	Scissor fork type
5	Steering type	/	Hydraulic power steering (steering wheel)
6	Type of support power	/	Electric motor
7	Supporting power	kW	8
8	Maximum Overall dimension(LWH)	mm	3725×1660×2525
9	Maximum dimension ofwork platform(L*W)	mm	3000×3000
10	Rated load	kg	1200
11	Lifting Load	kg	1000
12	Lifting height range	mm	1140～2670
13	Minimum ground clearance	mm	180
14	Tire type(Front/Rear)	/	27×8.5-15/27×8.5-15
15	Climbing ability	%	20
16	Wheel tread	mm	1310
17	Maximum Horizontal leveling angle of work platform	°	/
18	Maximum Longitudinal leveling angle of work platform	°	/
19	Platform rising & falling speed	mm/s	Rated load speed rise: 50; No load speed rise: 60 Rated load deceleration: 95; No load deceleration: 90
20	Maximum subsidence	mm	8
21	Travel speed range	m/s	0～1.94
22	Turning radius	m	6

*The parameter table only describes the basic parameters. Please consult Zoomye Company for high configuration, high power and optional configuration parameters.

*The specification parameters and appearance are constantly updated with the development of products. For specific parameters, please consult Zoomye Company. The latest parameters of Zoomye Company shall prevail.

The above parameters are not used as the basis for the acceptance of the complete machine. Consulting E-mail:zoomyetech@126.com
